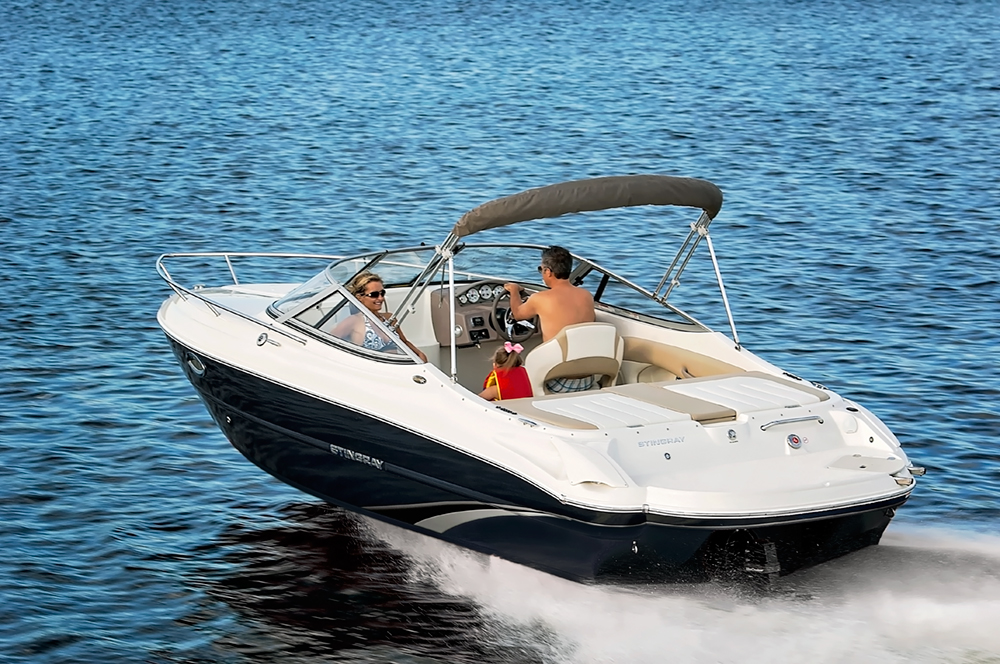

Stingray 225CR

225-cr-main

We rely on two principles when developing performance runabouts, 1) don’t compromise the proven Z-plane hull and 2) design with the boater in mind. These principles are evident in the 225 series.

Both 225 versions inherit the next generation hull, which features unique contours to the running surface that extend beneath both sides of the integrated swim platform, creating three-point water contact for an extremely stable ride. It allows the boat to get out of the hole and on plane quicker for faster speeds and a freer riding hull. And, if it’s a deep boat with ample freeboard for “big” water that interests you, the 225 is just the ticket. At 22′ 11″ and a beam of 100″, this is one deep and wide boat that offers safety and performance, all in the comfort of a spacious cockpit.

Stingray’s 225 series is packed with amenities, including a standup bimini top as standard equipment, has a select list of options if you feel the need to “glam” it up, and has unmatched performance as it rides on Stingray’s next generation Z-plane hull.”

    Standard Features

    • Hull

    • 5-Year Hull Protection Plan
    • 3-Year Hull Blister Protection Plan
    • Z-plane Hull, Patent # 5,063,868
    • Certifications: NMMA, USCG, IMCI, EC
    • MACT Compliant Resins & Gelcoats
    • Floor Storage w/ Oversize Door
    • High Output Bilge Blower
    • Performance Notched Transom

      Deck

    • Bow Anchor Storage
    • Bow Storage
    • Stainless Steel Bow Rails
    • SS Stern, Bow and Spring Line Cleats
    • Stainless Steel Pop Up Cleats
    • SS Multi-Step Boarding Ladder
    • Aluminium Deck Hatch with Screen
    • Walk through Windshield to Bow Access Step
    • Lockable Cabin Doors

      Cockpit

    • Indirect LED Cockpit Lighting
    • Backlit Gauges & Switches with Circuit Breakers
    • 25qt Removable Cockpit Cooler
    • Integrated Electric Horn
    • Deluxe Throttle and Trim Control
    • Helm seats w/ Fore & Aft Adj.
    • Prem. 36oz. Foam Backed Vinyl w/ PreFixx
    • Oversized Cup Holders
    • Steel Burl Trim Package

      Engine

    • Power Trim and Tilt w/ Indicator
    • Remote Oil Change System
    • Power Steering (engine driven)
    • *Easy Access Fuel Pump & Filter (service)
    • *Easy Access Water Pump (service)
    • *Fresh water Flushing Attachment
    • *Full Up Drive Trim
    • *Cone Clutch Shifting Technologies
    • *Drive Unit with High Water Intakes
    • *High Flow Exhaust
    • *with Volvo Penta Engine Option

    Optional Features

  • Hull

    IDProductPrice
    #50Auto/Man 1 in Bilge Pump (1100 GPH)Std
    #51Two-Tone Hull Color Stripe$608
    #56Electric Trim Tabs with LED indicator$1360
    #68Hydraulic Trim Tabs w/ LED indicator$1270

    Deck

    IDProductPrice
    #4Full Canvas Set (Acrylic)$688
    #13Cockpit Cover (Acrylic) w/ Support Pole$683
    #16Side Curtains (For Top Enclosure)$350
    #55Stainless Steel Hardware Package$594
    #65Bimini Top (Acrylic) Stand up w/ BootStd
    #66Optional Black Canvas$190
    #69Pressurized Water w/ Transom Shower$378

    Cockpit

    IDProductPrice
    #21Stereo, LCD Remote, Transom$241
    #33Snap-in Carpet-Std Seating$580
    #38Porta-Potti with Dockside Pump Out$241
    #39Tilt Steering w/ Locking DetentStd
    #44Gray Water Tank with Dockside Pump Out$550
    #46Fibreglass Cockpit Floor LinerStd
    #48Digital Depth Finder w/ Depth Alarm$456
    #49Magnetic Compass (for navigation)Std
    #76Cockpit Table w/ Bow & Cockpit MountsStd
    #77Filler Cushion - Aft Walkthru and SeatStd
    #82Twim Sport Bucket w/ BolsterStd
    #83Adjustable Pedestal for Twin Bucket Seats$220
    #84Filler Cushion for Bow/ CabinStd

    Engine

    ID Product Price
    #19Automatic Fire Extinguishing System$874
    #36Battery On/Off Switch w/ Safety Switch$137
    #40Transom Mounted Tilt SwitchStd

    Specifications

    SpecificationsImperialMetric
    Length Overall 22' 11" 7.0 m


    Beam 100 in 254 cm





    Bridge Clearance 55 in 140 cm


    Average Dry Weight* (w/ popular engine) 3539 lb 5.0L engine


    Fuel Capacity 57 gal 216 liter




    Ice Box Capacity
    32+25qt 30+24 liter

    Max Capacity 10 people (2080lbs) 10 people (943kg)

    Free Board 26 in 66 cm







    Molded Depth (Windshield Base to Keel) 54 in 137 cm






    Max Depth (Including Windshield) 61 in 155 cm






    Max Draft (Drive Down) 33 in 84 cm





    Max Draft 18 in 46 cm



    Bow Depth (Bow to Cushion Top 28 in 71 cm





    Bow Depth (Max Depth) 49 in 124 cm






    Bow Length (Max Length) 81 in 206 cm




    Cockpit Depth (At Helm) 36 in 91 cm




    Cockpit Length (Max Molded)81 in 206 cm
    Cockpit Width (Max Molded) 94 in 239 cm






    Transom Angle 15
    Deadrise Angle 20

    *with Volvo Penta Engine Option
